SH/SHM: ISO 6020-2, 160/210 bar

ME5 - Head rectangular flange

ME6 - Cap rectangular flange

MT1 - Head trunnion

MT2 - Cap trunnion

MT4 - Intermediate fixed trunnion

MP1 - Cap fixed clevis

MP3 - Cap fixed eye

MP5 - Cap fixed eye with spherical bearing

MS2 - Side lugs

MX1- Both ends tie rods extended

MX2 - Cap tie rods extended

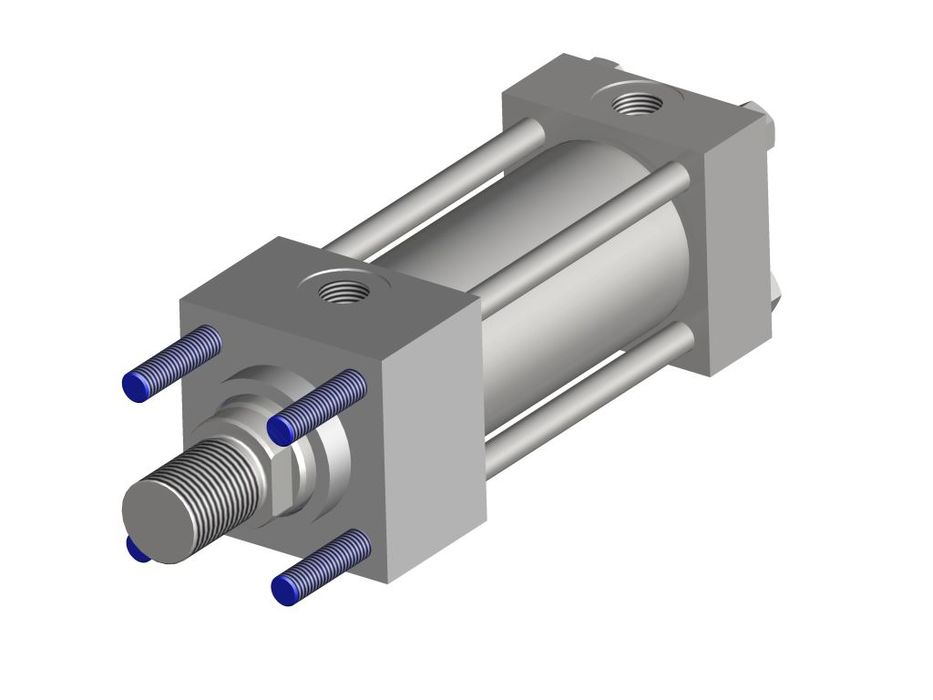

MX3 - Head tie rods extended

3-Stern SH - ISO 6020/2.pdf

Type SH: ISO 6020/2 - Compact series 160 bar

Type SHM: ISO 6020/2 - Compact series 210 bar

Diameters from 25 to 200 mm

STERN offers a wide variety of modifications and options in standard cylinders, tie rod cylinders are used primarily in the machine tool and automotive industry:

Position and speed transducer
Proximity sensors
Cushioning On both sides
Different connection ports
Working with water
Special seals
Rotating unions
Double rods
Accessories
